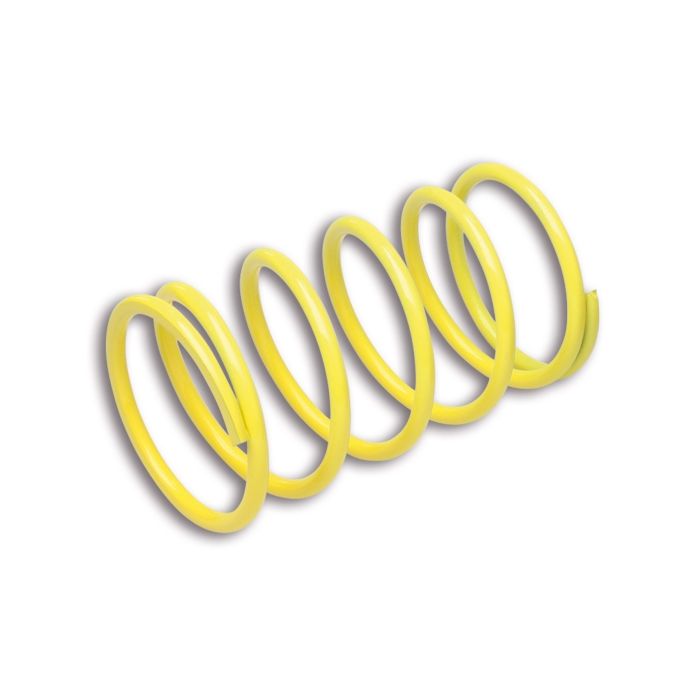

YELLOW VARIATOR ADJUSTER SPRING ext.Ø 67x115mm thread Ø 5,2mm 7,6k
€14.46
On Stock Delivery: from 3 to 7 days
SKU
299975.Y0
The dates are informative. There may be delays in delivery over which we have no influence.
Silicon-steel springs with high carbon content, heat-treated, dynamically balanced, kiln painted, designed and calculated for each specific application.
| CODE | SPRING SIZES | (K) Spring stiffness |
||
| A - Ø | B mm | C - Ø | ||
|
2916468.Y0 |
56.3 | 115 | 4 | 4.3k |
|
2914203.W0 |
56.8 | 138 | 3.8 | 2.75k |
|
2918843.R0 |
57.5 | 115 | 4 | 4.3k |
|
2911266.Y0 |
57.5 | 120 | 4.5 | 5.5k |
|
2912480.W0 |
57.8 | 150 | 4.2 | 4k |
|
2916464.Y0 |
58 | 128 | 4.3 | 5.4k |
|
2916465.R0 |
58 | 135 | 4.3 | 5.4k |
|
2916466.W0 |
58 | 142 | 4 | 3.5k |
|
2915553.Y0 |
58.3 | 105 | 4.3 | 7.3k |
|
2916498.R0 |
58.6 | 112 | 4.3 | 6.8k |
|
2911384.Y0 |
58.7 | 75 | 5 | 13.2k |
|
2915464.W0 |
60 | 95 | 5 | 10k |
|
2912647.Y0 |
63.1 | 120 | 4.6 | 4.5k |
|
2916460.R0 |
65 | 108 | 4.7 | 7.2k |
|
2916459.Y0 |
65 | 112 | 4.6 | 6.6k |
|
2911478.W0 |
65 | 116 | 4.5 | 6k |
|
29 9976.R0 |
65.4 | 100 | 5.2 | 9k |
|
2911084.W0 |
65.7 | 170 | 4.7 | 4.2k |
|
29 9975.Y0 |
67 | 115 | 5.2 | 7.6k |
|
2918425.Y0 |
67 | 120 | 5 | 6k |
|
2914120.W0 |
67.2 | 120 | 5 | 10k |
|
2918426.R0 |
67.2 | 130 | 5.2 | 6.2k |
|
2911074.Y0 |
67.2 | 181 | 4.7 | 3.5k |
|
2913316.W0 |
67.4 | 107 | 5.2 | 9.5k |
|
2916497.R0 |
67.6 | 120 | 5.2 | 9.5k |
|
2916484.Y0 |
67.7 | 112 | 5.2 | 9.5k |
|
2916113.W0 |
67.9 | 120 | 5.4 | 9k |
|
2911072.W0 |
68 | 100 | 5.2 | 10k |
|
2914712.W0 |
68 | 120 | 5.2 | 12k |
|
2914401.G0 |
70.3 | 156.5 | 5.5 | 7k |
|
2914023.R0 |
70.5 | 126 | 6.5 | 14k |
|
2914024.Y0 |
70.5 | 138 | 6 | 9.4k |
|
2917874.V0 |
70.75 | 105 | 6.5 | 20k |
|
2912772.W0 |
71 | 205 | 6.5 | 11.5k |
|
2915315.W0 |
73 | 96 | 6 | 14.1k |
|
2916114.W0 |
75.7 | 160 | 5.7 | 7.7k |
|
2916507.Y0 |
77.2 | 153 | 5.7 | 6.9k |
|
2916508.R0 |
77.2 | 160 | 5.7 | 6.9k |
|
2913003.W0 |
77.7 | 130 | 6 | 8.9k |
|
2911429.Y0 |
78 | 150 | 5.5 | 6.3k |
|
2919125.W0 |
78.8 | 96 | 6.3 | 14k |
|
2913344.W0 |
80.4 | 115 | 6.5 | 11.2k |
|
2912478.W0 |
81 | 130 | 7 | 15k |
|
2914121.W0 |
85.1 | 205 | 6.5 | 7.2k |
|
2915497.W0 |
88 | 135 | 7 | 11k |
| mallosi product manuals | https://wemalossistore.blob.core.windows.net/files/montaggio/pdm/7314401.pdf |
|---|
APRILIA : APRILIA LEONARDO 250 4T LC, APRILIA LEONARDO 300 4T LC
BENELLI : BENELLI VELVET 250 4T LC
ITALJET : ITALJET JUPITER 250 4T LC
MALAGUTI : MALAGUTI MADISON 250 4T LC (YAMAHA), MALAGUTI PassWord CK 250 4T LC
MBK : MBK EVOLIS 250 ie 4T LC 2014->, MBK KILIBRE 300 4T LC (H314E), MBK SKYLINER 250 4T LC
YAMAHA : YAMAHA MAJESTY 250 4T LC, YAMAHA VERSITY XC 300 4T LC (H314E), YAMAHA X CITY 250 ie 4T LC euro 3 (G358E), YAMAHA X CITY 250 ie 4T LC euro 3 2014-> (G3B7E), YAMAHA X MAX 250 ie 4T LC euro 3 2010->2013 (G389E), YAMAHA X MAX 250 ie 4T LC euro 3 2014->2017 (G3B3E), YAMAHA X MAX 250 ie 4T LC euro 3 2008->2009 (G362E), YAMAHA X MAX 250 4T LC
