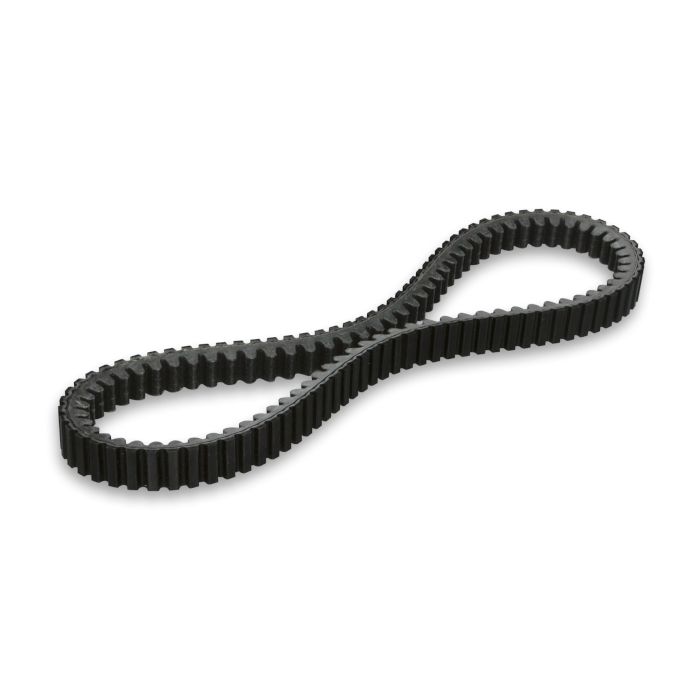

X K belt for MAXI SCOOTER (22,6x13x955 mm 28°)
€89.10
On Stock Delivery: from 3 to 7 days
SKU
6116069
The dates are informative. There may be delays in delivery over which we have no influence.
X K Belt
Racing use
Malossi X K Belt is the top of racing transmission belts!
Made with hard-wearing materials combined with Kevlar® inserts, Malossi trapezoidal X K belts provide a very high thermal and abrasion resistance. Worthy exponents of MALOSSI HYPER RACING product range, they are the result of decades of experience and of search for absolute performance in the racing field.
|
| CODE |
A Width mm |
B Thickness mm |
C External size mm |
D Angle |
| 6116830 | 13 | 6.5 | 974 | 30° |
| 6117005 | 13 | 6.5 | 1056 | 30° |
| 6117006 | 13 | 6.5 | 1134 | 30° |
| 61 7215 | 15.3 | 8 | 652 | 32° |
| 61 7231 | 16.5 | 8 | 670 | 30° |
| 61 7664 | 16.5 | 8 | 703 | 30° |
| 6117010 | 16.6 | 8 | 745 | 28° |
| 6117087 | 16.9 | 8 | 800 | 28° |
| 61 7229 | 17 | 8 | 735 | 30° |
| 61 9591 | 17 | 8 | 781 | 30° |
| 61 7665 | 17.5 | 8 | 724 | 30° |
| 61 7587 | 17.5 | 8 | 804 | 30° |
| 6111108 | 17.5 | 8 | 815 | 30° |
| 61 7211 | 17.5 | 9 | 675 | 32° |
| 61 8779 | 17.5 | 9.5 | 820 | 30° |
| 6112959 | 17.8 | 10 | 778 | 28° |
| 6113501 | 18 | 9 | 743 | 30° |
| 6115822 | 18 | 10.2 | 782 | 28° |
| 6113503 | 18.2 | 8 | 683 | 30° |
| 6111153 | 18.2 | 8 | 734 | 30° |
| 6116424 | 18.5 | 8 | 765 | 30° |
| 61 9535 | 18.5 | 8 | 830 | 30° |
| 6116215 | 18.8 | 10.6 | 814 | 28° |
| 6116671 | 19 | 8 | 776 | 30° |
| 6117451 | 19 | 9.7 | 939 | 30° |
| 6115104 | 19 | 10.2 | 745 | 28° |
| 6115668 | 19 | 10.2 | 815 | 28° |
| 6117452 | 19.2 | 10 | 833 | 31° |
| 6117453 | 19.8 | 9.3 | 806 | 30° |
| 6116148 | 19.9 | 9.7 | 785 | 30° |
| 6116665 | 20 | 9.5 | 795.5 | 30° |
| 6115275 | 20.7 | 9.7 | 884 | 32° |
| 6116419 | 22 | 9.3 | 796 | 28° |
| 6116666 | 22 | 9.3 | 809 | 28° |
| 6116101 | 22 | 9.3 | 832 | 28° |
| 6113059 | 22 | 9.3 | 918 | 28° |
| 6116667 | 22 | 9.7 | 880 | 28° |
| 6114895 | 22 | 10 | 835 | 30° |
| 6113502 | 22 | 10 | 849 | 30° |
| 6117009 | 22 | 10.5 | 830 | 28° |
| 6115666 | 22 | 13 | 824 | 28° |
| 6116697 | 22 | 13 | 945 | 28° |
| 6118204 | 22,1 | 10,6 | 825 | 30° |
| 61 9956 | 22.2 | 11 | 888 | 30° |
| 61 9584 | 22.5 | 10 | 840 | 30° |
| 6116422 | 22.5 | 10 | 920 | 30° |
| 6116117 | 22.5 | 10.5 | 814 | 30° |
| 6116118 | 22.5 | 10.5 | 937 | 30° |
| 6112714 | 22.5 | 11 | 1008 | 30° |
| 6113027 | 22.6 | 13 | 834 | 28° |
| 6116069 | 22.6 | 13 | 955 | 28° |
| 6116094 | 23 | 11.4 | 871 | 28° |
| 6112713 | 23 | 14.8 | 947 | 28° |
| 6116421 | 23.2 | 10.5 | 949.5 | 30° |
| 6119482 | 23,2 | 11,6 | 864,3 | 28° |
| 6117478 | 23.4 | 11.7 | 822.5 | 28° |
| 6115276 | 24 | 10.2 | 987 | 30° |
| 6116568 | 24 | 10.5 | 912 | 30° |
| 6113028 | 24 | 11.4 | 995 | 32° |
| 6113021 | 24 | 15 | 1041 | 30° |
| 6117832 | 24.9 | 14.6 | 974 | 28° |
| 6117205 | 24.4 | 10.6 | 924 | 30° |
| 6115277 | 25.2 | 14.7 | 1004 | 30° |
| 6119157 | 25.7 | 13.6 | 1007 | 28° |
| 6115279 | 26 | 13.6 | 1093 | 28° |
| 6113396 | 26 | 14.8 | 1008 | 28° |
| 6115278 | 26.2 | 10.5 | 969 | 31° |
| 6113590 | 26.4 | 13 | 1026 | 32° |
| 6113500 | 26.5 | 14.4 | 1244 | 30° |
| 6115803 | 26.5 | 14.4 | 1262 | 30° |
| 6118984 | 28.1 | 13.3 | 1062 | 33° |
| 6119797 | 28.4 | 15.6 | 1030 | 283° |
| 6115125 | 28.7 | 16 | 1044 | 28° |
| 6116100 | 28.9 | 14.7 | 1036 | 28° |
| 6116079 | 30 | 14.7 | 1018 | 26° |
| 6112960 | 30 | 15 | 912 | 26° |
| 6115280 | 30.1 | 14.7 | 931 | 28° |
| 6116011 | 31.2 | 16 | 908 | 28° |
| 6114674 | 32.2 | 14.9 | 892 | 28° |
| 6118071 | 32.2 | 14.9 | 908 | 28° |
| 6115687 | 32.4 | 16.9 | 894 | 28° |
| 6115126 | 32.7 | 16.9 | 945 | 28° |
DuPont™ and Kevlar® are trademarks or registered trademarks of E.I. du Pont de Nemours and Company.
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
| mallosi product manuals | https://wemalossistore.blob.core.windows.net/files/montaggio/pdm/7312737.pdf |
|---|
APRILIA : APRILIA SCARABEO 250 4T LC (PIAGGIO M285M), APRILIA SCARABEO Light 250 ie 4T LC 2007->, APRILIA SCARABEO Special 300 ie 4T LC euro 3 (PIAGGIO M28RM), APRILIA SPORTCITY 250 ie 4T LC euro 3 (PIAGGIO M288M), APRILIA SPORTCITY CUBE 300 ie 4T LC euro 3 (LEADER M28LM)
DERBI : DERBI RAMBLA 250 ie 4T LC euro 3, DERBI RAMBLA i 300 ie 4T LC euro 3 (PIAGGIO)
PEUGEOT : PEUGEOT GEOPOLIS 250 ie 4T LC euro 3, PEUGEOT GEOPOLIS R/GT 300 ie 4T LC euro 3, PEUGEOT GeoRS 300 ie 4T LC euro 3 (PIAGGIO M28MM)
PIAGGIO : PIAGGIO BEVERLY 250 4T LC euro 1-2 (M285M), PIAGGIO BEVERLY S 250 ie 4T LC euro 3, PIAGGIO BEVERLY 300 ie 4T LC euro 3 <-2009 (M28MM), PIAGGIO BEVERLY 300 ie 4T LC euro 3 2010->2016 (M692M), PIAGGIO BEVERLY 300 ie 4T LC euro 4 2017->2020 (MA21M), PIAGGIO BEVERLY TOURER 300 ie 4T LC euro 3, PIAGGIO BEVERLY 250 ie 4T LC euro 3
